Plot Gas Lift Design

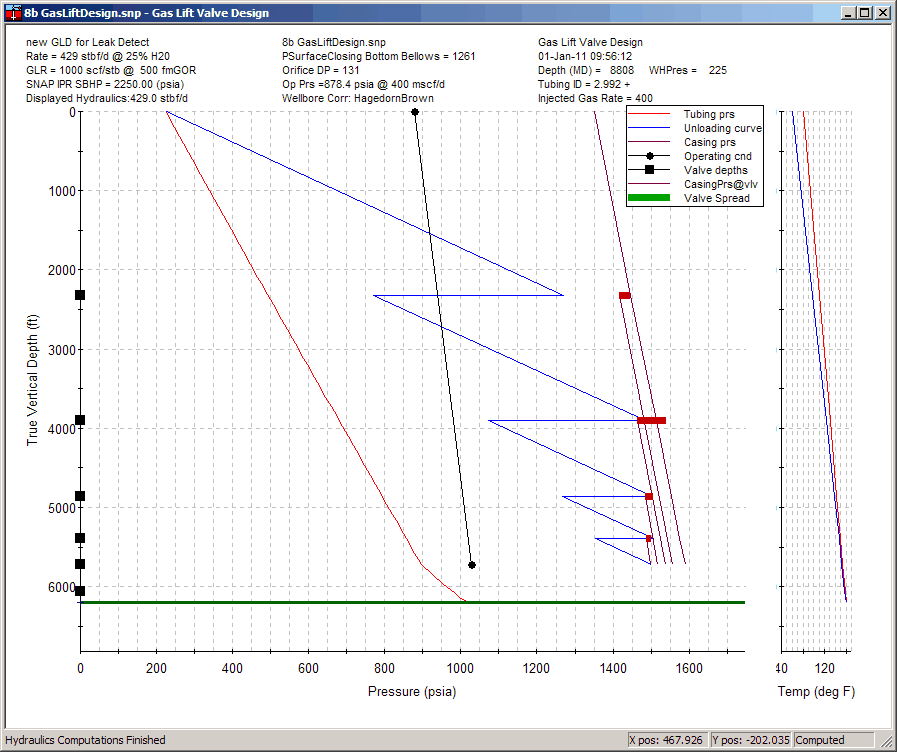

The Gas Lift Design plot is shown when this graph option is selected.  This plot will also appear when the apply button is pressed on the Gas Lift Design Dialog, or when the calculate all button is pressed.

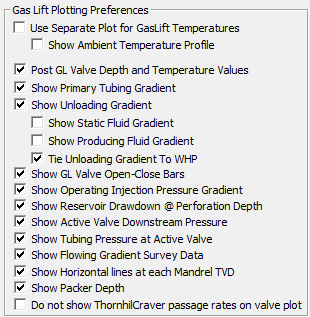

These plots can be customized via the Edit->Preferences menu.  Below is a sample of the choices that are available.

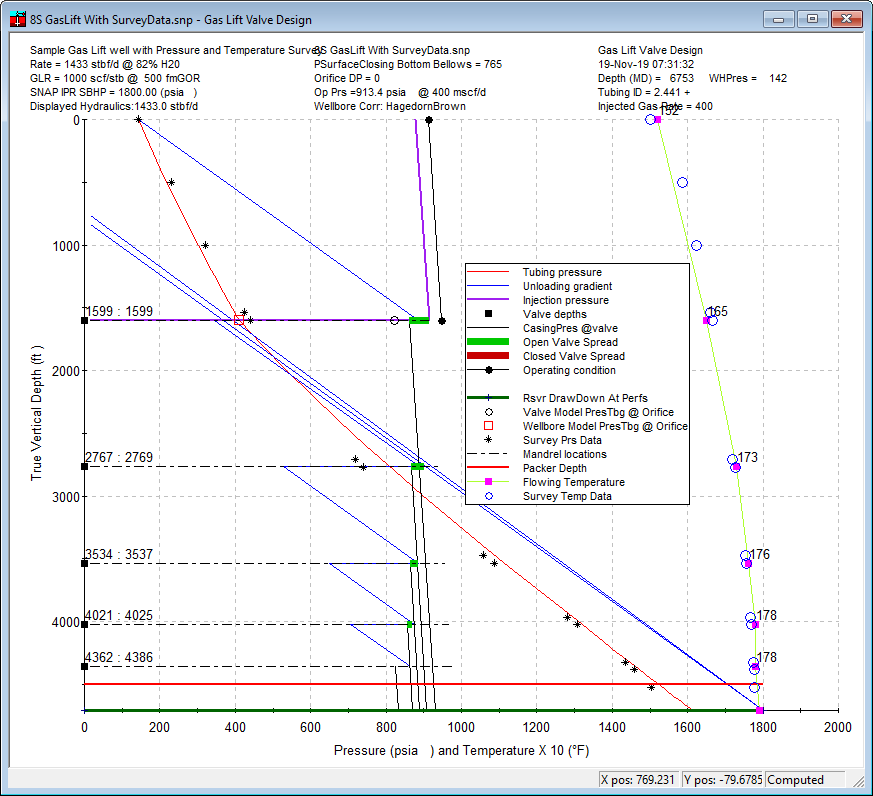

A more complex gas lift plot is shown below.
