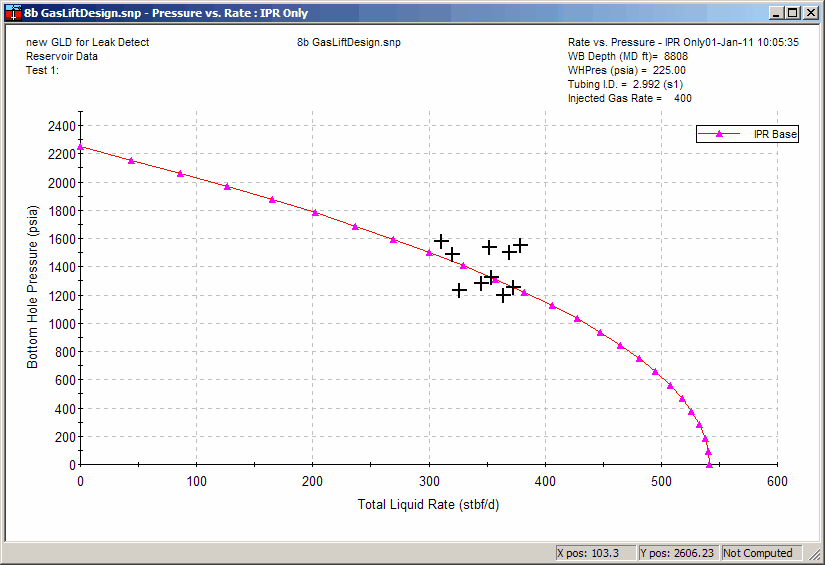

Plot IPR Results



Only the IPR data is shown when this graph option is selected.  The only compelling reason to show this plot alone is to tune in the IPR data while not showing the Hydraulics data.  This plot will also apear if the Apply button is pressed while on one of the IPR panels.



Shortcuts

Toolbar:
