Sensitivity plots show the sensitized parameter compared to rates or pressures.  They are activated through the Graphs->Sensitivity Results menu.  This menu item is disabled until a run is made and are not available if no sensitivities are defined.

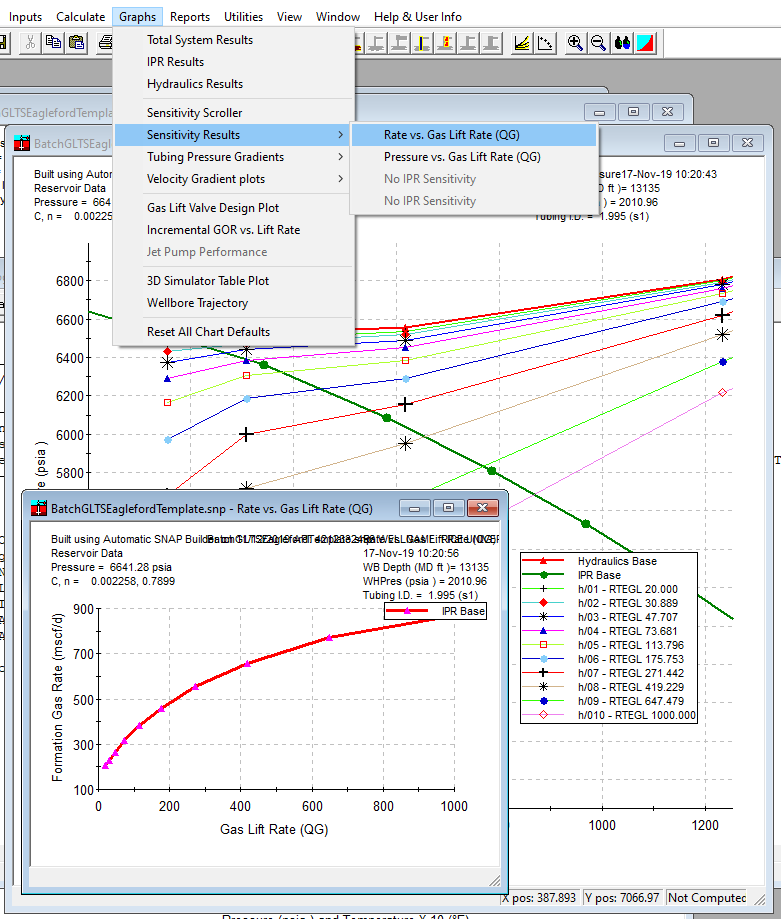

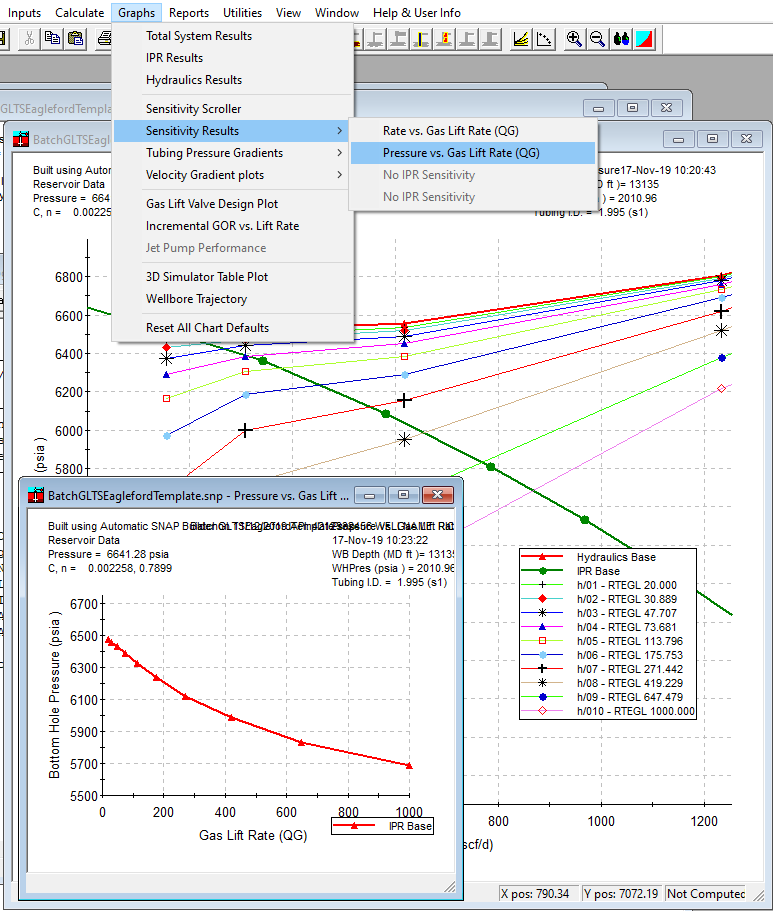

Sample Hydraulics Sensitivities plots are below.
