Gas Injector Wells

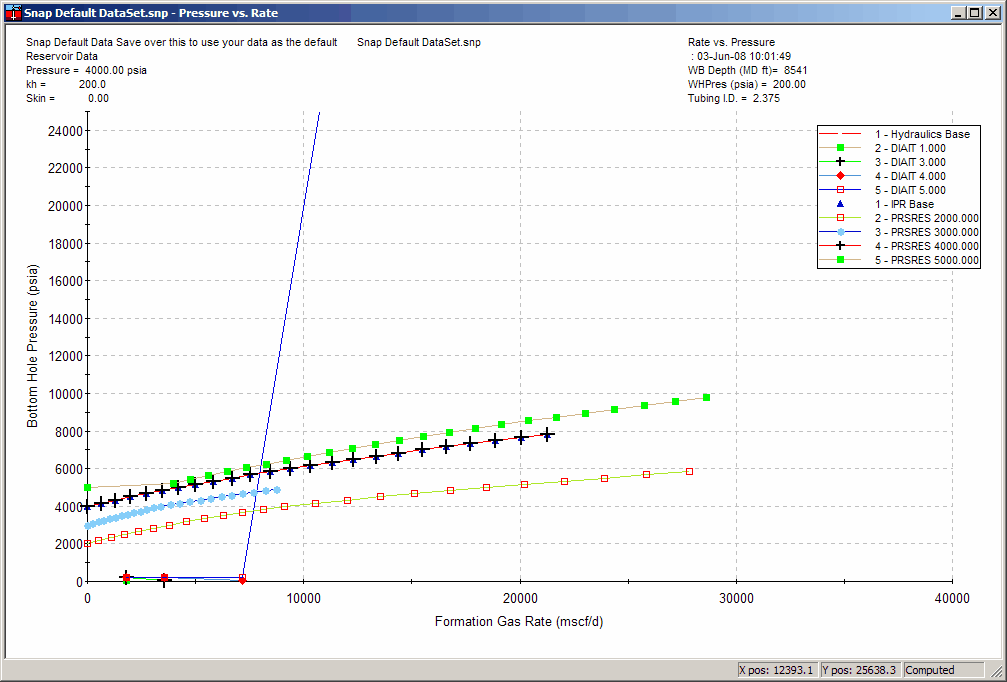

Gas injection wells can be modeled by estimating the injection performance of the reservoir then merging those results with the wellbore hydraulics relationships.  The results will appear backward from typical nodal analysis with the hydraulics curve moving downward from right to left and the IPR curve going up from right to left.  The intersection of the two still will represent the actual rate at which the well will flow.
