Additional Hydraulics Flow Rates

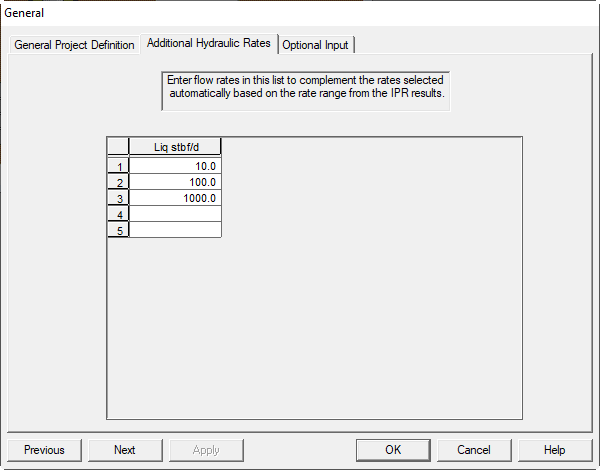

This dialog box allows the identification of specific flow rates at which the hydraulics curve will be evaluated.   Since the hydraulics calculations are time consuming, it is best not to use too many rates when first screening the data.  Once the general solution has been found discrete points around the intersection point can be evaluated to improve the accuracy of the calculations.



FLOW RATE (stbpd or mscfd):  The table of rates to be used in constructing the flowline and/or tubing hydraulics curve  The flow rates are sorted internally so they do not have to be in ascending order.





The following items may be edited on the Additional Hydraulics Panel:
