Reports Menu: Detailed Hydraulics Output

Reports Hydraulics Output

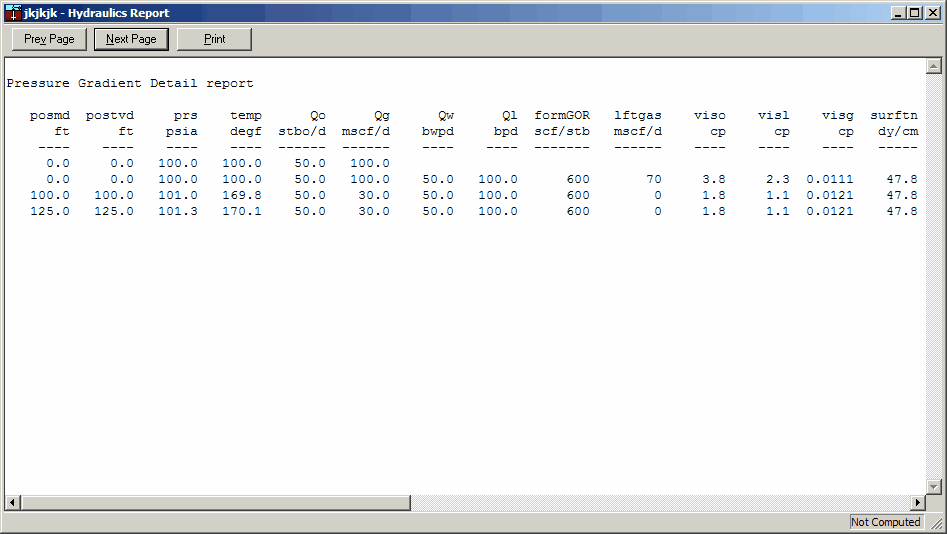

Pressure Gradient Detail report

posmd	postvd	prs	temp	Qo	Qg	Qw	Ql	formGOR	lftgas	viso	visl	visg	surftn	z	rhol	rhog	fvf	liqhold	vs_l	vs_g	VGact	VGLift	VGdiff	QGLift	re	fgrad	sgrad	agrad	step	Corr	flow
ft	ft	psia	degf	stbo/d	mscf/d	bwpd	bpd	scf/stb	mscf/d	cp	cp	cp	dy/cm	n/a	#/ft3	#/ft3	RVB/stb	frac	ft/sec	ft/sec	ft/sec	ft/sec	ft/sec	mscfpd	n/a	psi/ft	psi/ft	psi/ft	ft	name	regim
----	----	----	----	------	------	----	----	-------	------	----	----	----	-----	-----	-----	-----	-------	----	------	------	------	------	------	------	-------	------	------	------	------	-----	------
200	200	209.5	92.8	120	1200	0	120	10000	0	1.3	1.3	0.0106	28.6	0.963	48.7	0.654	1.04	0.029	0.662	102.45	105.506	19.904	85.6	209	4.70E+03	0.29121	0.00621	0	200	ANSA	GAS
400	400	252.3	95.6	120	1200	0	120	10000	0	1.1	1.1	0.0107	27	0.945	48.4	0.988	1.054	0.0389	0.67	67.562	70.3	18.129	52.2	231	5.40E+03	0.20466	0.00921	0	200	ANSA	GAS
600	600	290.2	98.4	120	1200	0	120	10000	0	1	1	0.0109	26.3	0.937	48.3	1.155	1.061	0.0432	0.675	57.73	60.339	16.895	43.4	248	5.80E+03	0.17893	0.0107	0	200	ANSA	GAS
800	800	324.8	101.3	120	1200	0	120	10000	0	1	1	0.011	25.6	0.93	48.1	1.304	1.068	0.0468	0.68	51.042	53.55	15.963	37.6	263	6.20E+03	0.16106	0.01204	0	200	ANSA	GAS
1000	1000	357	104.1	120	1200	0	120	10000	0	0.9	0.9	0.0111	25	0.924	48	1.441	1.075	0.05	0.684	46.116	48.542	15.221	33.3	275	6.60E+03	0.14767	0.01327	0	200	ANSA	GAS
1200	1200	387.3	106.9	120	1200	0	120	10000	0	0.9	0.9	0.0112	24.4	0.919	47.8	1.569	1.081	0.0527	0.688	42.305	44.661	14.608	30.1	287	7.00E+03	0.13716	0.01443	0	200	ANSA	GAS
1400	1400	416.1	109.7	120	1200	0	120	10000	0	0.8	0.8	0.0112	23.9	0.915	47.7	1.689	1.087	0.0553	0.692	39.248	41.544	14.088	27.5	297	7.40E+03	0.12864	0.01551	0	200	ANSA	GAS
1600	1600	443.8	112.5	120	1200	0	120	10000	0	0.8	0.8	0.0113	23.4	0.911	47.5	1.802	1.093	0.0576	0.695	36.727	38.971	13.638	25.3	307	7.70E+03	0.12153	0.01655	0	200	ANSA	GAS
1800	1800	470.4	115.3	120	1200	0	120	10000	0	0.8	0.8	0.0114	22.9	0.907	47.4	1.911	1.098	0.0597	0.699	34.605	36.802	13.242	23.6	315	8.10E+03	0.11549	0.01754	0	200	ANSA	GAS
2000	2000	496.1	118.2	120	1200	0	120	10000	0	0.7	0.7	0.0115	22.5	0.903	47.3	2.014	1.104	0.0617	0.702	32.788	34.944	12.89	22.1	323	8.50E+03	0.11027	0.0185	0	200	ANSA	GAS
2200	2200	521.1	121	120	1200	0	120	10000	0	0.7	0.7	0.0116	22.1	0.9	47.2	2.114	1.109	0.0636	0.706	31.211	33.33	12.573	20.8	331	8.80E+03	0.1057	0.01942	0	200	ANSA	GAS
2400	2400	545.5	123.8	120	1200	0	120	10000	0	0.7	0.7	0.0117	21.7	0.898	47	2.21	1.114	0.0653	0.709	29.827	31.912	12.285	19.6	338	9.20E+03	0.10165	0.02031	0	200	ANSA	GAS
2500	2500	557.5	125.2	120	1200	0	120	10000	0	0.7	0.7	0.0117	21.4	0.896	47	2.28	1.118	0.0666	0.711	28.887	30.947	12.151	18.8	341	9.40E+03	0.09888	0.02097	0	100	ANSA	GAS
2700	2700	566	128	120	1200	0	120	10000	0	0.6	0.6	0.0118	21.2	0.895	46.9	2.314	1.12	0.1607	0.269	10.746	12.803	12.058	0.7	905	2.50E+05	0.00435	0.03816	0	200	ANSA	SLUG
2900	2900	574.5	130.8	120	1200	0	120	10000	0	0.6	0.6	0.0118	21.1	0.896	46.8	2.317	1.122	0.1608	0.27	10.73	12.786	11.967	0.8	907	2.50E+05	0.00433	0.03818	0	200	ANSA	SLUG
3100	3100	583.1	133.6	120	1200	0	120	10000	0	0.6	0.6	0.0119	21	0.897	46.7	2.339	1.125	0.1613	0.27	10.628	12.672	11.878	0.8	909	2.50E+05	0.00428	0.03848	0	200	ANSA	SLUG
3300	3300	591.7	136.5	120	1200	0	120	10000	0	0.6	0.6	0.0119	20.8	0.897	46.6	2.361	1.127	0.1619	0.271	10.527	12.56	11.79	0.8	911	2.60E+05	0.00423	0.03878	0	200	ANSA	SLUG
3500	3500	600.3	139.3	120	1200	0	120	10000	0	0.6	0.6	0.012	20.7	0.897	46.5	2.383	1.13	0.1624	0.271	10.429	12.451	11.704	0.7	913	2.60E+05	0.00418	0.03908	0	200	ANSA	SLUG
3700	3700	609	142.1	120	1200	0	120	10000	0	0.6	0.6	0.012	20.6	0.898	46.5	2.404	1.132	0.163	0.272	10.332	12.344	11.619	0.7	915	2.60E+05	0.00414	0.03938	0	200	ANSA	SLUG
3900	3900	617.8	144.9	120	1200	0	120	10000	0	0.6	0.6	0.0121	20.4	0.898	46.4	2.426	1.135	0.1635	0.273	10.238	12.239	11.535	0.7	916	2.60E+05	0.00409	0.03968	0	200	ANSA	SLUG
4100	4100	626.6	147.7	120	1200	0	120	10000	0	0.6	0.6	0.0121	20.3	0.898	46.3	2.448	1.137	0.1641	0.273	10.146	12.137	11.452	0.7	918	2.70E+05	0.00405	0.03997	0	200	ANSA	SLUG

Column Definitions

posmd	ft	Measured Depth Position in wellbore
postvd	ft	True Vertical Depth Position in wellbore
prs	psia	Pressure at that point in the wellbore
temp	degf	Temperature at that point in the wellbore
Qo	stbo/d	Oil rate
Qg	mscf/d	Gas rate originating from the beginning of the wellbore
Qw	bwpd	Water Rate
Ql	bpd	Total Liquid Rate
formGOR	scf/stb	Formation GOR
lftgas	mscf/d	Lift gas at this wellbore location
viso	cp	Oil Viscosity at this temperature and pressure
visl	cp	Liquid Viscosity at this temperature and pressure
visg	cp	Gas Viscosity at this temperature and pressure
surftn	dy/cm	Liquid / gas surface tension
z	n/a	Zfactor
rhol	#/ft3	Liquid Density
rhog	#/ft3	Gas Density
fvf	RVB/stb	Formation Volume Factor
liqhold	frac	Liquid Fraction
vs_l	ft/sec	Superficial liquid Velocity
vs_g	ft/sec	Superficial gas velocity
VGact	ft/sec	Actual In situ gas velocity
VGMinL	ft/sec	Actual In situ gas velocity
VGdiff	ft/sec	Difference in Lift and actual velocity
QGMinL	mscfpd	Gas rate required to unload well at this location
re	n/a	Reynold's Number
fgrad	psi/ft	Friction Gradient
sgrad	psi/ft	Hydrostatic Gradient
agrad	psi/ft	Acceleration Gradient
step	ft	Iteration step in wellbore
Corr	name	Correlation name
