Dashboard View

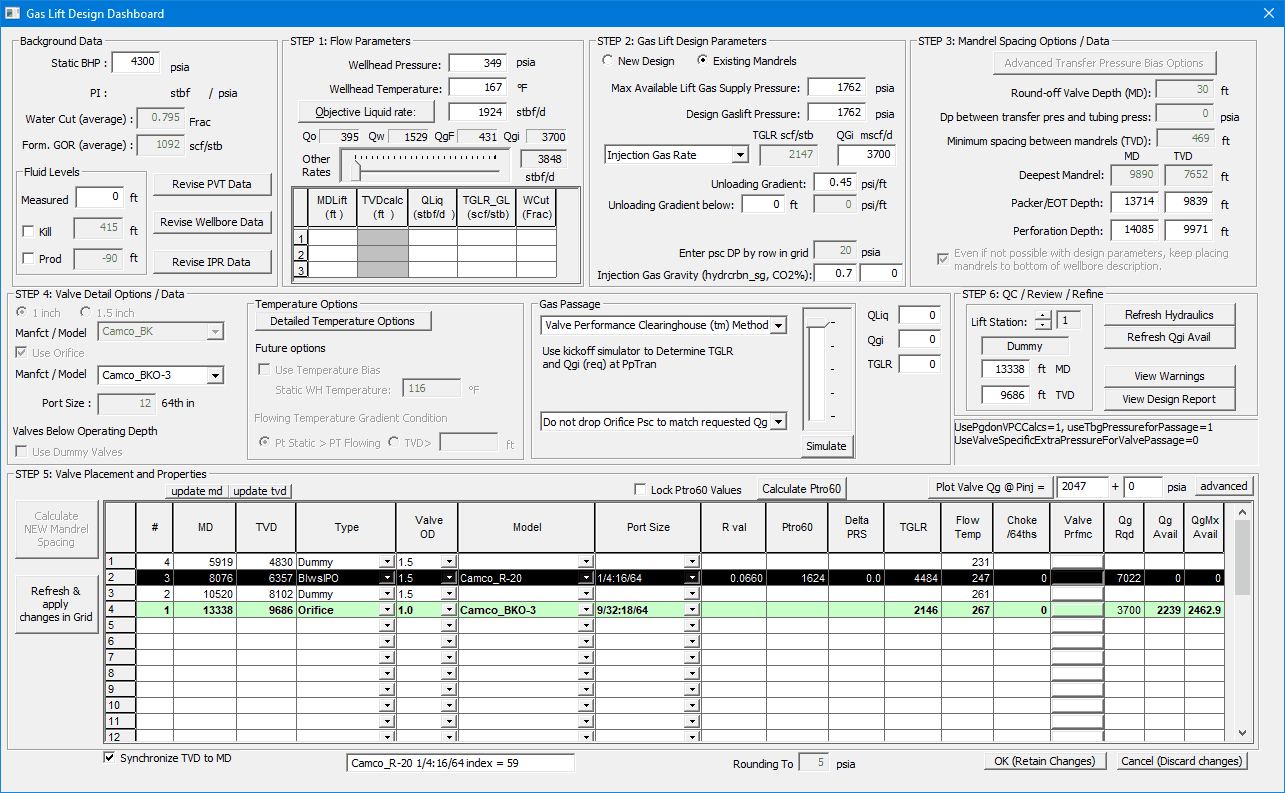

The Gas Lift Design Dashboard was introduced in 2019 to meet user needs for more extensive design options.  The dashboard is very large and needs two screens to be used effectively.  Most designers will start in the upper right corner of the panel and work toward Step 6, checking and revising the design specifics during each step.  Certain buttons will flash and/or remain highlighted when the underlying data has changed sufficiently to warrant an iteration back to that input area.  Eventually the design will converge on parameters that are internally consistent and meet the objectives of the engineer.
