Excel Hydraulics

Many SNAP routines can be called from other programs by linking to the hydra.dll, gaslift.dll and IPR.dll calculation libraries.

Several 3rd party programs call the SNAP hydraulics library and use the embedded calculations to make the complex calculations available without having to re-write that code for each program.

The simplest method of calling the SNAP hydraulics for a typical non-programmer is through the example Excel file SNAP_HYDRAULICS_FROM_EXCEL.xls .

This workbook has samples of simple direct calls to the SNAP hydraulics routines. It also has samples of more complex calls based on Excel reading a dataset, then modifying rate and other parameters within the worksheet macro.

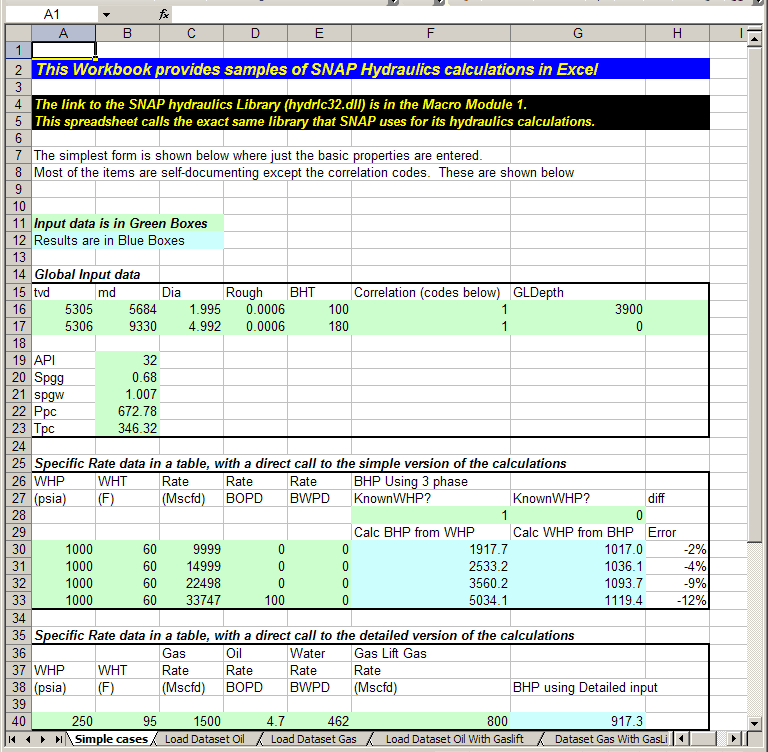

The first tab of the spreadsheet has a few simple cases where the input is only TVD, MD, Diameter, Roughness, BHT, Correlation, and Gas lift depth. In these cases all other possible input values are assumed to match a set of typical defaults. The example shows the values calculated from wellhead to bottom-hole then back the other direction to test the result using the DPPIPE function call as in the following image.

Excel first page

More Complex Calls to the SNAP Hydraulics Libraries

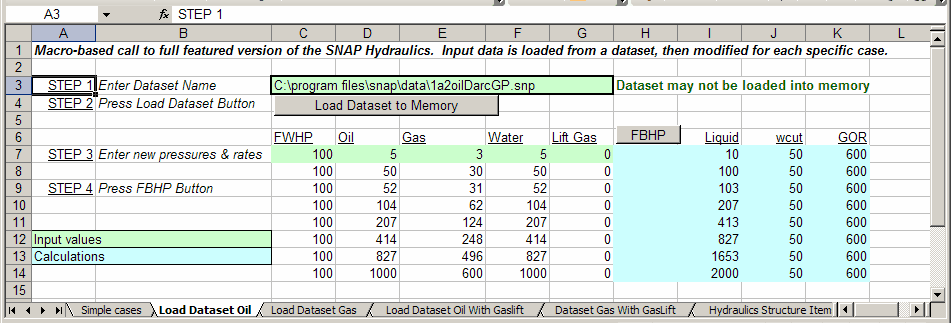

The more complex features allow a complete set of variables to be loaded from a SNAP dataset, then selected values can be changed from within excel as in the example shown below from the second tab in the sample spreadsheet.

excelpage2

In this example, the dataset "C:\program files\snap\data\1a2oilDarcGP.snp" is loaded into the Visual Basic memory parameters using the Macro "LoadDataset". This internal macro is launched when the button is pressed. From that point, until the next dataset is loaded, any calls to the more detailed hydraulics routines will use the values loaded from the dataset, unless replaced through one of the hydraulics function calls, or through a visual basic macro. Pressing the button will launch a macro "runWithLoadedVariables()" that pulls in the values to the left of the FBHP column, calls the macro function "hydrlicFullMPNoOutput(MP, Out)" and returns a value to the spreadsheet. (program listing included below)

Filling values down on the C, D, E, F, and G column will increase the number of Items run through the Macro. It is recommended that this spreadsheet be stored as a sample and then saved as your own working copy. This will not affect the macro calls or links to the libraries.

Public Sub runWithLoadedVariables()

Dim ref As String

If LoadedDataset = "" Then

ret = MsgBox("no dataset reference is loaded", vbCritical)

Exit Sub

End If

Range("b6").Value = ""

Range("h3").Value = "WORKING....."

Range("h3").Font.Color = RGB(255, 0, 0)

For Row = 7 To 10000

ref = "H" & Row

If Val(Range(ref).Value) = 0 Then Exit For

Range(ref).Value = ""

Next Row

' loop down through values and post

MP.glVolOpt = 1 ' always assume gas rate provided

For Row = 7 To 10000

ref = "C" & Row

If Val(Range(ref).Value) = 0 Then GoTo ENDSUB

MP.pressure = Range(ref).Value

If (MP.PrimaryPhase = 1) Then

MP.gas = Range("E" & Row).Value

If (MP.gas = 0) Then GoTo FAIL

liq = Range("D" & Row).Value + Range("F" & Row).Value

MP.liquid = liq / MP.gas * 1000 ' this is actually yeald for gas wells

If (liq > 0) Then

MP.WCut = Range("F" & Row).Value / liq * 100

Else

MP.WCut = 0#

End If

MP.GLRate(0) = Range("g" & Row).Value

Else ' must be oil

MP.liquid = Range("D" & Row).Value + Range("F" & Row).Value

oil = Range("D" & Row).Value ' this is actually yeald for gas wells

MP.gas = Range("E" & Row).Value ' holding area. need to load GOR

If (oil = 0) Then

MP.GOR = 99999# ' FAIL

Else

MP.GOR = MP.gas / oil * 1000

End If

If (MP.liquid > 0) Then

MP.WCut = Range("F" & Row).Value / MP.liquid * 100

Else

MP.WCut = 0#

End If

MP.GLRate(0) = Range("g" & Row).Value

End If

retval = hydrlicFullMPNoOutput(MP, Out)

Range("h" & Row).Value = retval

GoTo ENDLOOP

FAIL:

Range("h" & Row).Value = "Error"

ENDLOOP:

ENDSUB:

Range("h3").Font.ColorIndex = 10

Range("h3").Value = "finished"

End Sub

Since this is a new feature, additional documentation and support will be available if this feature usage warrants additional discussion.
