Display Reports
Shortcuts
Toolbar:
Keys: None
Example:

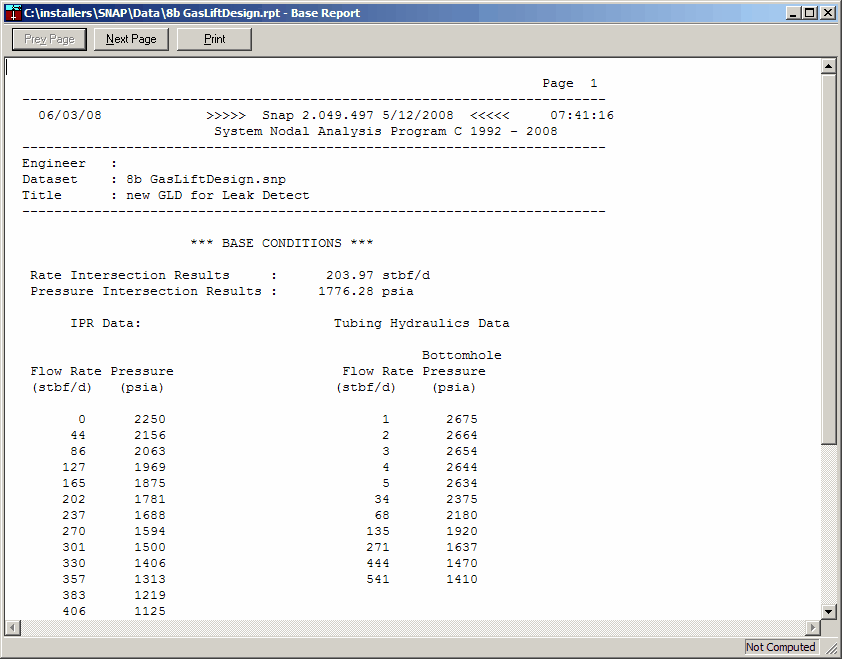

Page 1 -------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** RESERVOIR DATA ***
Well Type..........................: Oil Well
Flowline Selection.................: No Flowline
Gas Lift Selection.................: No Gas Lift
*** PVT Properties ***
Oil API gravity....................: 35.000
Gas Specific Gravity (air-1.)......: 0.600
Reservoir Producing GOR (scf/stb)..: 600
Average Water Cut (fraction).......: 0.000
Water Specific Gravity.(water = 1).: 1.000
Solution Gas Oil Ratio Correlation.:Vazquez and Beggs
Formation Volume Factor Correlation:Vazquez and Beggs
Oil Viscosity Correaltion..........: Glaso
Page 2
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
<<< Darcy with Turbulence factor >>>
Zone Ave Effective Formation Drainage Wellbore Skin Water
# Press Perm Thickness Radius Radius Factor Cut
(psia) (md) (ft) (ft) (ft) (frac)
1 4000.0 10.000 20.00 1500.0 0.401 0.000 0.000
Page 3
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** WELL DATA ***
<<< Well Geometry Data Selection >>>
Wellhead Temperature (F)...........: 100.0
Bottomhole temperature.............: 170.0
<<< Well Geometry Data >>>
Flow Flow Measured True
Segment I.D. O.D. Depth Vert Depth Pipe Wellbore
Number (in) (in) (ft) (ft) Roughness Correlation
1 1.995 -1.000 7875.00 7875.00 0.001800 HagedornBrown
Page 4
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** BASE CONDITIONS ***
Rate Intersection : 652.94
Pressure Intersection : 1344.61
IPR Data: Tubing Hydraulics Data
Bottomhole
Flow Rate Pressure Flow Rate Pressure
(stbfpd) (psia) (stbfpd) (psia)
0 4000 61 990
41 3833 123 945
82 3667 246 1069
123 3500 491 1247
164 3333 982 1544
205 3167
246 3000
287 2833
328 2667
369 2500
410 2333
451 2167
492 2000
533 1833
574 1667
615 1500
656 1333
697 1167
737 1000
778 833
819 667
860 500
901 333
941 167
982 0
Page 5
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** SENSITIVITY INTERSECTIONS ***
***** FLOW RATE (stbfpd) *****
IPR Hydraulics
None Surface Pressure
------------------------------------------------------------------------
100.000 200.000 300.000 400.000 500.000
------------------------------------------------------------------------
Base 652.9 602.3 550.2 495.7 438.3
***** PRESSURE (psia) *****
IPR Hydraulics
None Surface Pressure
------------------------------------------------------------------------
100.000 200.000 300.000 400.000 500.000
------------------------------------------------------------------------
Base 1344.6 1551.3 1763.3 1985.5 2219.1
Page 6
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** HYDRAULIC SENSITIVITIES ***
Surface Pressure 200.00
Bottomhole
Flow Rate Pressure
(stbfpd) (psia)
61.39 1464.69
122.78 1211.77
245.56 1327.37
491.12 1490.42
982.24 1759.30
Page 7
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** HYDRAULIC SENSITIVITIES ***
Surface Pressure 300.00
Bottomhole
Flow Rate Pressure
(stbfpd) (psia)
61.39 1901.38
122.78 1568.14
245.56 1593.87
491.12 1733.91
982.24 1978.57
Page 8
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** HYDRAULIC SENSITIVITIES ***
Surface Pressure 400.00
Bottomhole
Flow Rate Pressure
(stbfpd) (psia)
61.39 2329.04
122.78 1922.04
245.56 1867.74
491.12 1983.49
982.24 2201.34
Page 9
-------------------------------------------------------------------------
04/14/98 ARCO Exploration and Production Technology 11:26:44
>>>>>>> SNAP Alpha Version <<<<<<<
System Nodal Analysis Program
-------------------------------------------------------------------------
Engineer :
Dataset : NuSnap Default DataSet.snp
Title : NuSnap default dataset
-------------------------------------------------------------------------
*** HYDRAULIC SENSITIVITIES ***
Surface Pressure 500.00
Bottomhole
Flow Rate Pressure
(stbfpd) (psia)
61.39 2701.32
122.78 2267.66
245.56 2157.38
491.12 2236.05
982.24 2420.61
